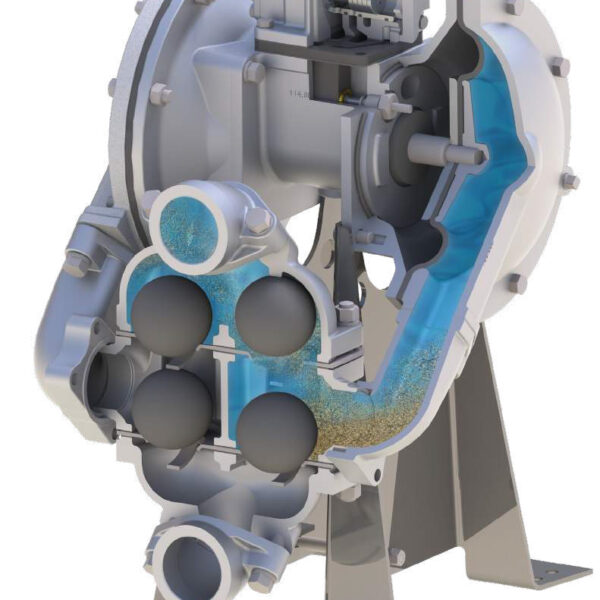

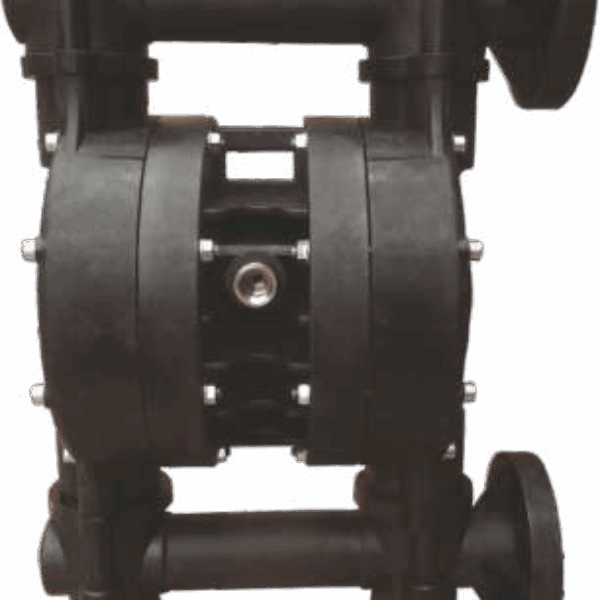

Ruby 120
Construction materials: PP, PP+CF, PVDF+CF, AISI 316, ALUMINUM
| Technical Data | Ruby 120 |
|---|---|
| Suction / Discharge connections | 3/4” BSP F |
| Air connection | 1/2” BSP F |
| Max. flow rate | 115 l/min |
| Max. self-priming capacity – dry running | 3 m |
| Max. negative suction head – with pump primed | 9.5 m |
| Max. head | 80 m |
| Max. operating pressure | Min. 2 bar – Max. 8 bar |
| Max. size of solids | 3 mm |
| Max. operating temperature | PP: 60°C, PVDF: 95°C, AISI 316: 95°C, ALUMINUM: 95°C |
| Weight PP | 4.0 Kg |
| Weight PVDF+CF | 5.5 Kg |
| Weight AISI 316 | 9.0 Kg |
| Weight ALUMINUM | 6.0 Kg |
